INJORA Gold Viper 1721 Brushless Motor 2800KV for 1/24 SCX24
Compatibility:
ESC: Only compatible with INJORA MBL32 ESC and QuicRun Mini24 ESC. Not compatible with other ESCs!
Transmission: Only compatible with stock SCX24 transmission and INJORA metal transmission
Chassis: Not compatible with carbon fiber chassis with angled skid plate. For stock SCX24 chassis, the ESC tray must be trimmed to fit the motor.
Battery: 3S batteries are highly recommended for optimal performance and smoother low-speed control.
Note:
Some noise at mid-throttle is normal for the 1721 motor due to its high-speed, open-rotor design. This does not indicate a defect.
The 1721 Gold Viper is best for rigs under 700g. For heavier rigs, we recommend the 2204 Fat Viper for stronger drag brake performance.
Features:
New gold finish for a more eye-catching appearance
Reduces mid-range noise with slightly improved torque output
Includes a protective sleeve at the wire outlet for enhanced durability
Delivers smooth and linear control at low speeds, with powerful and aggressive performance at high speeds
Motor Specifications:
Model Number: 1721
Waterproof: Yes
Motor Type: Sensorless Brushless Outrunner
RPM/Volt: 2800KV
Motor Poles: 14
Motor Slots: 12
No-Load Current (11.1V): 0.7A
Max Current: 20A
Motor Connectors: PH2.0 3-Pin

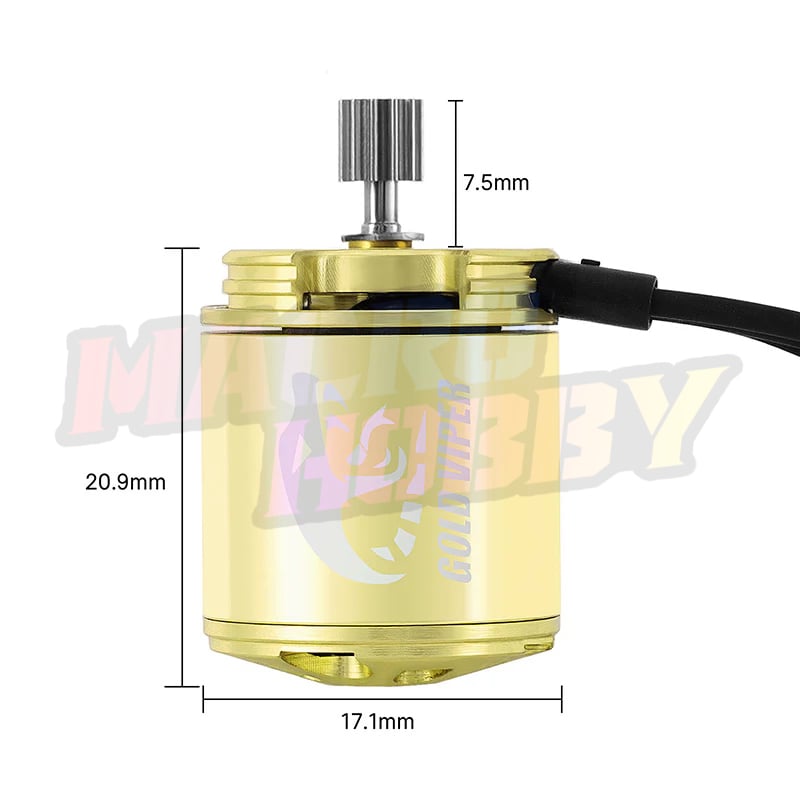

Dimensions: Φ17.1*20.9mm
Output Shaft: Φ1.7mm
Motor Pinion: 0.3Mod 12T
Weight: 18.5g

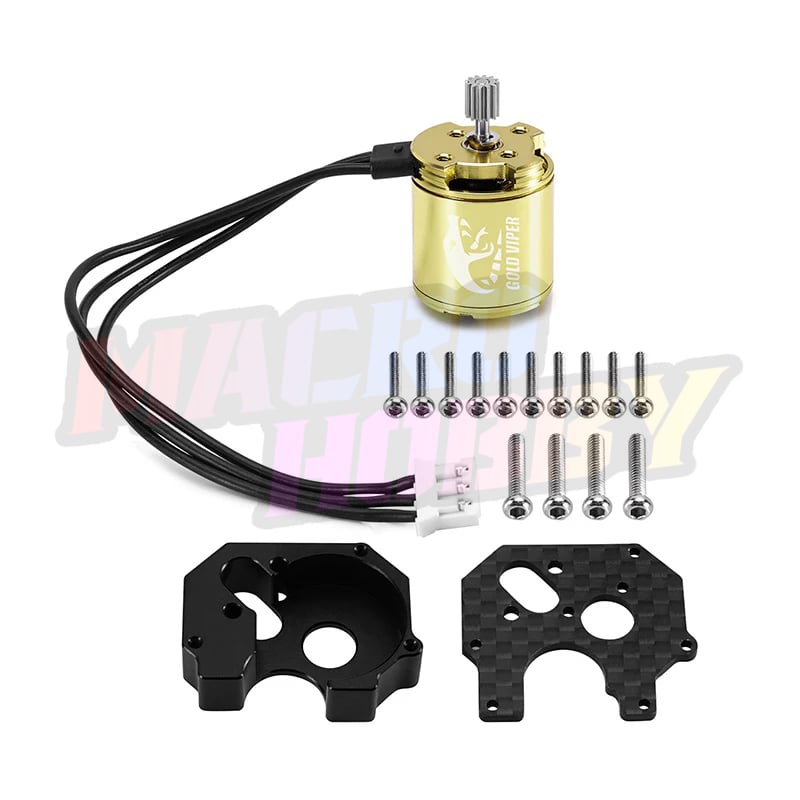

Package List:

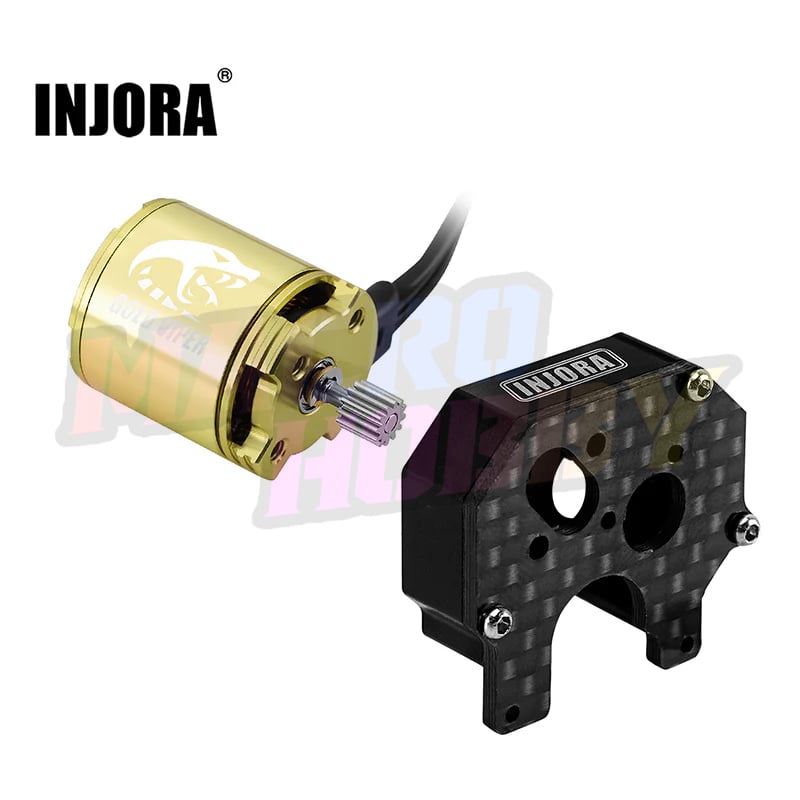

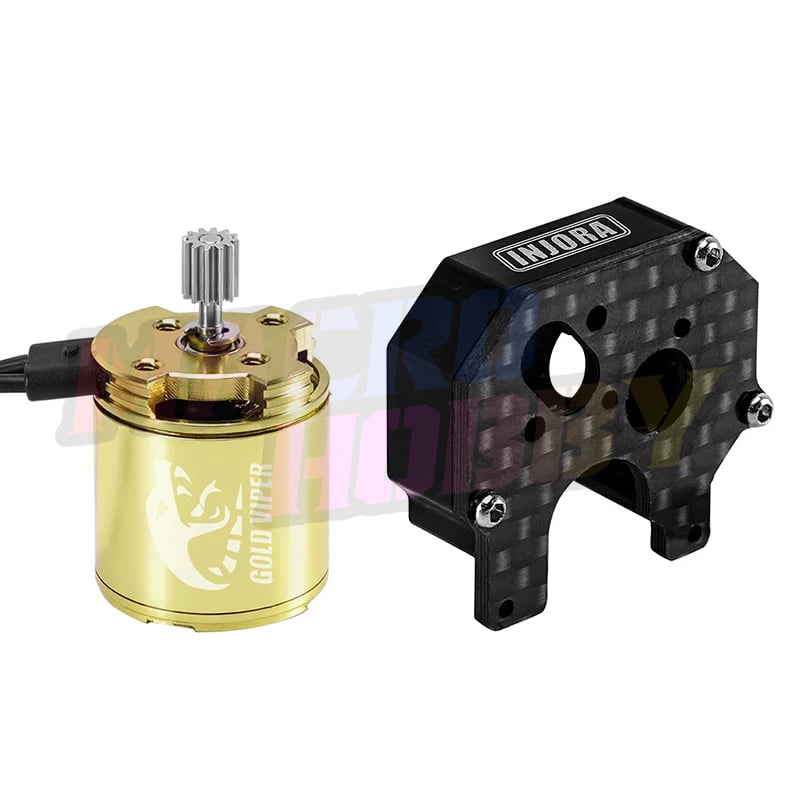

1×1721 Brushless Motor with Pinion
1×Motor Mount
