INJORA Roverin M30 G2 FOC Sensored Brushless ESC & Motor Combo for 1/18 TRX4M Ascent18 (4800KV)
What's New in G2?
The Roverin M30 G2 features essential hardware upgrades to improve reliability and thermal performance:
1. Enhanced Heat Management: Optimized ESC circuitry to effectively reduce operating temperatures.
2. Refined ESC Outlets: Redesigned wire exits to prevent accidental short circuits.
3. Upgraded Motor Leads: Reinforced motor wiring with superior high-temperature resistance.
Note:
Transmission: compatible with stock TRX4M transmission and INJORA TRX4M metal transmission (It desn't fit 370 transmission), stock Redcat Ascent18 transmission, INJORA Ascent18 metal transmission
Battery: compatible with 2S and 3S batteries
The BEC supports up to 10V output for low-current applications only (e.g., powering receivers or sensors). For high-current servos, we recommend using 6V–7.4V for reliable and safe operation.
Features:
Wireless Bluetooth & Smart App Tuning: Built-in Bluetooth for easy adjustments—no extra devices needed! Enjoy real-time tuning, data logging, and firmware updates via the INJORA Link app. (iOS: Download from the App Store; Android: Get it on Google Play.)
Powerful Low-Speed Torque & Smooth Operation: The FOC algorithm ensures precise power control, delivering strong torque even at extremely low speeds for smooth and responsive driving.
Adjustable Drag Brake (Up to 200%): Enhanced climbing and speed control. Improved efficiency and reduced noise. Twice the braking power of standard brushless systems, ensuring superior downhill control.
Smart Magnetic Encoder Motor: Stable three-phase signal output for precise control. Accurate sensor feedback eliminates jitter and enhances smooth acceleration.

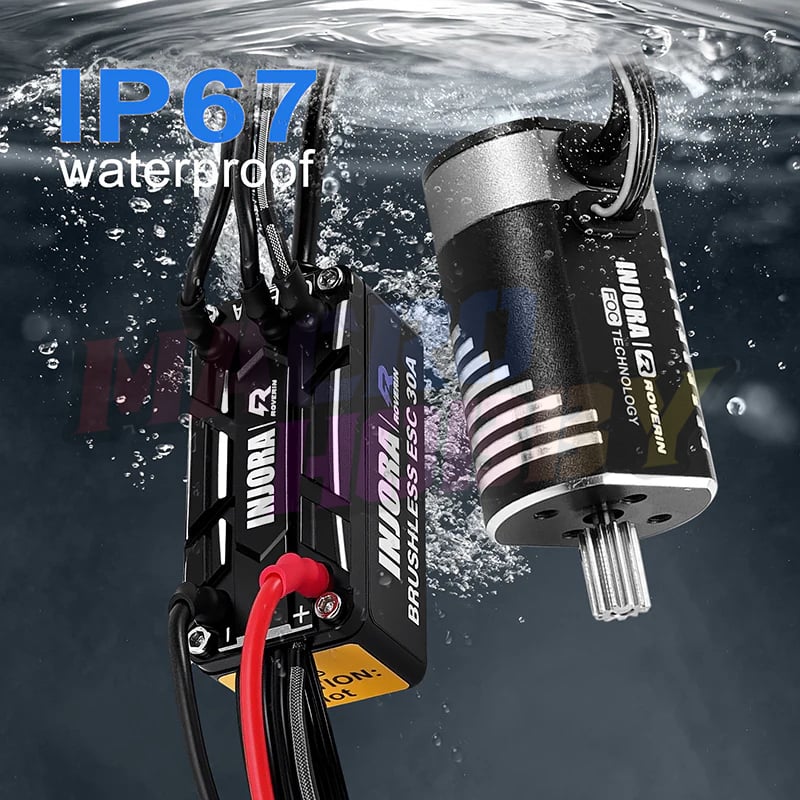

IP67 Waterproof & Dustproof: Fully protected against water, mud, dust, and snow, ensuring durability in extreme environments.
Comprehensive Protection System: Low Voltage Protection, Overheat Protection, Overvoltage Protection, Overcurrent Protection, Phase Loss Protection, Throttle Signal Loss Protection, Motor Disconnection Protection
ESC Specification:
ESC Type: FOC Brushless ESC (FOC-M30)
Continuous Current: 30A
Peak Current: 100A
Battery Support: 2-3S LiPo
BEC Output: 0-10V adjustable, 5A continuous, 10A peak
Size: 35.5×16.3×16.3mm
Weight: 25g
Waterproof: Yes
Motor Specification:
Motor Type: Brushless Sensored 180 Motor
Motor KV: 4800KV
At no-load(7.4V): RPM: 35000 ±10% Current: <0.9A
At load(7.4V): RPM: 31000 ±10% Current: 3.0A
Battery Support: 2-3S LiPo
Size: 42.7×18×20.5mm
Weight: 36.5g
Motor Pinion: 0.4mod 11T
Waterproof: Yes

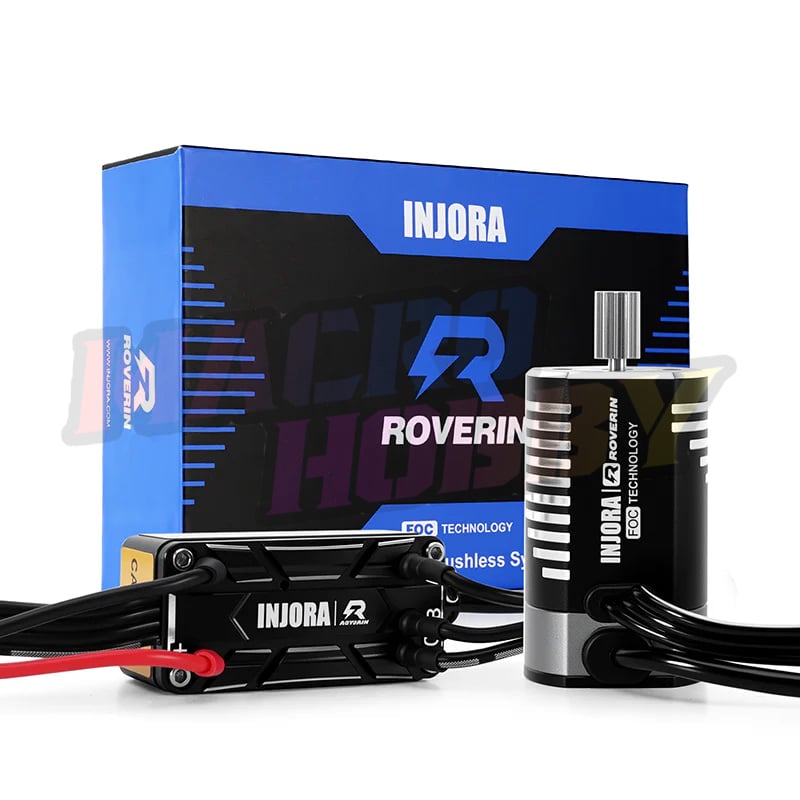

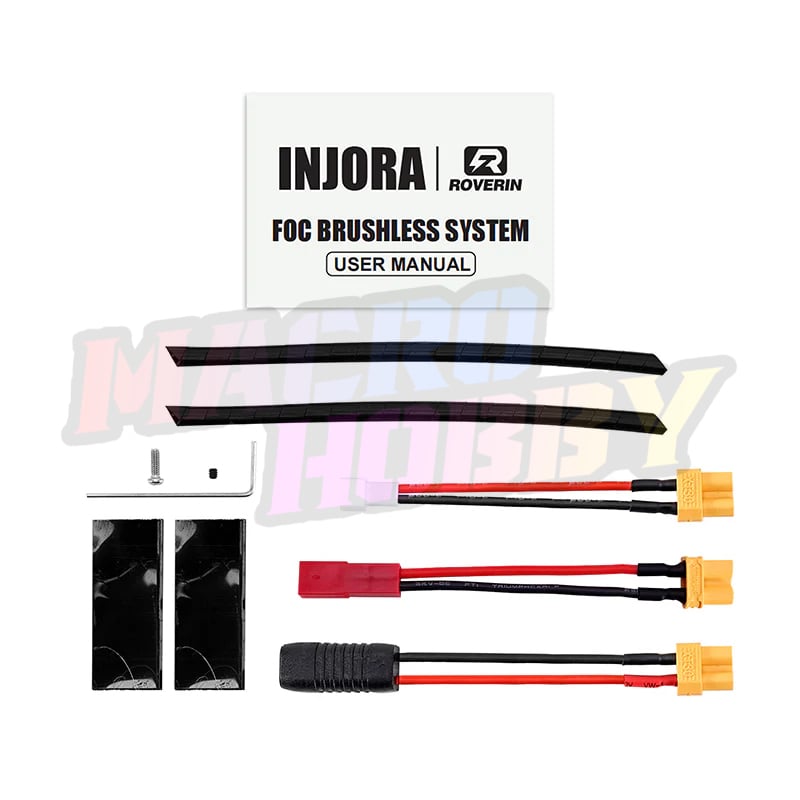

Package List:

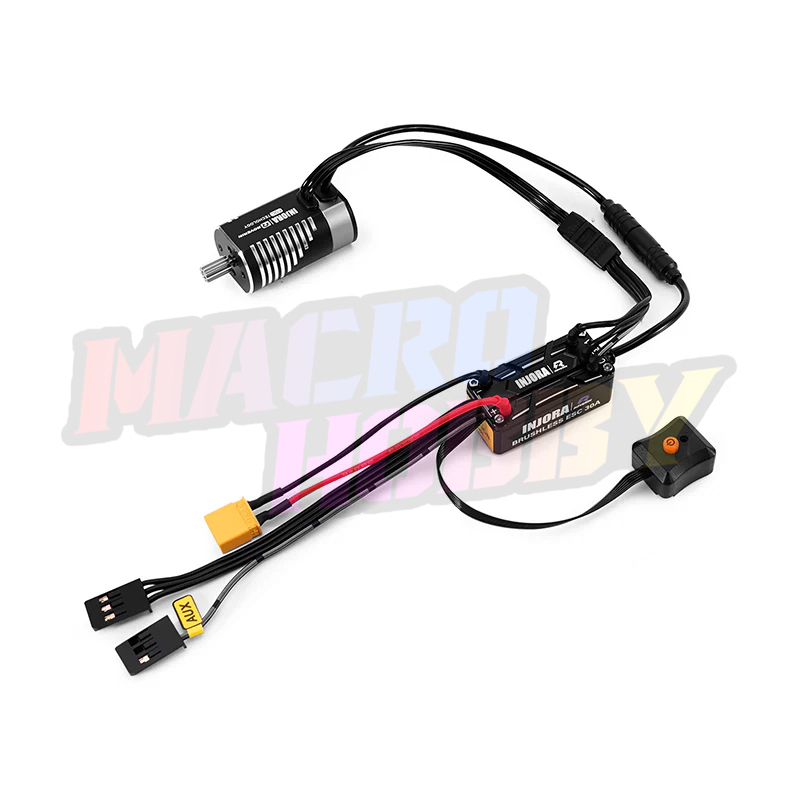

1 × ESC
1 × Motor
1 × Battery Adapter Cable (Female XT30 to Male TRX-4M)
1 × Battery Adapter Cable (Female XT30 to Male JST-RCY)
1 × Battery Adapter Cable (Female XT30 to Male JST-PH2.0)
1 × User Manual
